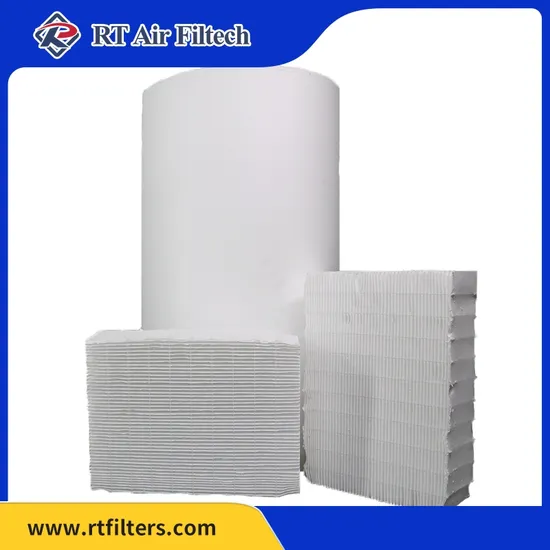

Filter Media Industrial Filter Paper Fiber Glass Filter Paper

Overview

Uniform texture, double-layer filter material structure, layered filtration;
Stable chemical and physical properties and strong corrosion resistance;
High filtration efficiency and low resistance;
Large specific surface area and high dust capacity;
High hydrophobicity, excellent water and moisture resistance;
Large expansion strength and high filter material stiffness;
The fluctuation of banner quantitative and vertical quantitative is very small;
High temperature resistance, can be used in high temperature environment within 300 ºC.

It is the raw material for the production of diaphragm filter, non diaphragm filter, combined filter and high-efficiency HEPA filter.

Detailed Photos

Features Application Technical Parameters

Main components	Superfine glass fiber	Temperature resistance	≤300ºC
Filter Grade	F6-U15	Temp short peaks	350ºC
Flame retardant grade	A(GB/T 17591-2006)	Moisture resistance (relative humidity)	≤100%

Specification

Model	Filtration Class	EFF. ([email protected]/s)	Ration (g/m2)	Thickness (mm)	I.N.P (Pa)	Longitudinal tensile Strength(MD)	Transverse tensile strength(CD)	Water resistancein (h20)	Stiffness (mg)	Combustion loss
RT-HGF06	M6	≥35%	70±2	0.45±0.06	≤20Pa	≥0.8	≥0.65	≥15	≥900	4.5±1.5
RT-HGF07	F7	≥50%	70±2	0.45±0.06	≤32Pa	≥1.2	≥0.65	≥15	≥900	4.5±1.5
RT-HGF08	F8	≥65%	70±2	0.45±0.06	≤45Pa	≥1.3	≥0.65	≥15	≥900	4.5±1.5
RT-HGF09	F9	≥85%	70±2	0.45±0.06	≤70Pa	≥1.3	≥0.65	≥15	≥900	4.5±1.5
RT-HGF10	H10	≥95%	72±2	0.4±0.06	≤125Pa	≥1.3	≥0.65	≥15	≥1200	4.5±1.5
RT-HGF11	H11	≥98%	72±2	0.4±0.06	≤180Pa	≥1.3	≥0.65	≥15	≥1200	4.5±1.5
RT-HGF12	H12	≥99.8%	72±2	0.4±0.06	≤246Pa	≥1.3	≥0.65	≥15	≥1200	4.5±1.5
RT-HGF13	H13	≥99.97%	74±2	0.4±0.06	≤292Pa	≥1.3	≥0.55	≥20	≥1200	4.5±1.5
RT-HGF14	H14	≥99.997%	74±2	0.4±0.06	≤370Pa	≥1.3	≥0.55	≥20	≥1200	4.5±1.5
RT-HGF15	U15	≥99.9995%	76±3	0.4±0.07	≤405Pa	≥1.3	≥0.55	≥20	≥1200	4.5±1.5
