Overview

Basic Info.

Model NO.	LAUREL-F-04
Chemical Composition:	Al2O3.SiO2
Shape	Ceramic Fiber Paper
Manufacturing Technique	Jilt Silk Rug
Kind	High Purity Ceramic Fiber
Item	Ceramic Fiber Paper
Temperature	1050-1430 ºC
Density	180-220 Kg/M3
Color	White/ Pure White
Al203+Sio2	97-99 %
Application	Kiln/Furnace Insulation
Refractory Grade	Non-Inflammable
Function	Refractory & Heat Insulation & Sealing
Thickness	1-10 mm
Width	610/1220 mm or Customized
Length	10-60 M or Customized
Raw Material	Ceramic Fiber Bulk
Type	Heat-Resistant Material
Grade	1260ºC/1350ºC/1430ºC
Performance	Excellent
Transport Package	Carton Box/Wooden Pallet
Specification	Customized
Trademark	LAUREL
Origin	China
HS Code	680610
Production Capacity	2000 Ton/Year

Product Description

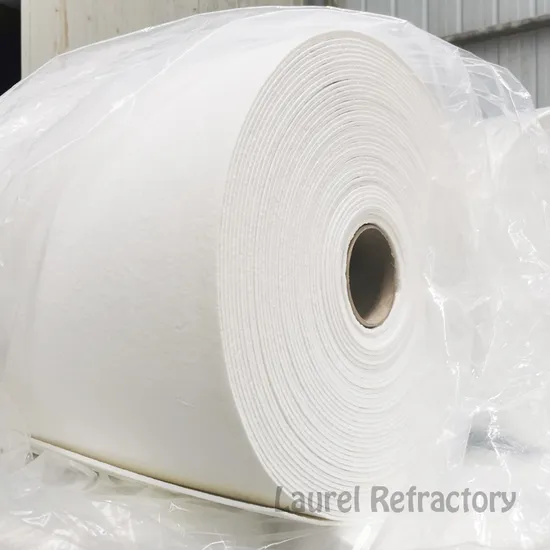

Laurel ceramic fiber paper is a lightweight refractory material processed from a blend of high-purity alumina-silica fibers into a highly flexible, uniform sheet. Ceramic fiber paper has low shrinkage, good tensile strength, and low thermal conductivity. It contains a small amount of organic binder for processing which makes it flexible. Our product has a highly uniform structure due to its controlled basis weight and thickness, assuring low thermal conductivity and a clean, smooth surface ideal for gaskets or sealing.

$Manufacturers 1-10mm Thick Install Fiberglass High Temp Heat Insulated Material Refractory Rock Wool Insulating Ceramic Fiber Insulation Lining Paper for Sale$

Applications of Ceramic fiber paperKiln/ Furnace backup insulationGaskets for high-temperature applicationLadle & tundish insulationIndustrial material for thermal insulation, sealing, and heat-resistant materialHeat insulation material for the auto industry, such as auto exhaust pipePipe insulation wrapping

$Manufacturers 1-10mm Thick Install Fiberglass High Temp Heat Insulated Material Refractory Rock Wool Insulating Ceramic Fiber Insulation Lining Paper for Sale$

Q1. Are you a Manufacturer? A: Yes, our factory is in Zibo, Shandong province. We also have strong cooperating relationships with other manufacturers for other related products.Q2. Can we visit your factory? A: Sure, warmly welcome at any time. Seeing is believing.Q3. Can you accept OEM or ODM? A: Yes, customization is also welcome.Q4. What's the MOQ of the trial order? A: No limit. We can offer the best suggestions and solutions to meet your requirements.Q5. What are your payment methods? A: T/T, L/C, and other payment terms are also available for us.Q6. How long is the delivery time? A: Normally, it takes around 10-20 days. It also depends on the quantity of the order size. Q7. How about your company's certification? A: CE, ISO9001, and test report. We also could apply for other necessary certifications.Q8. How can you control your quality? A: For each production processing, we have a complete QC system to control the quality during production.Q9. Do you provide free samples? A: Yes, free samples are available.

Product Description

Density: 180-220 kg/m³Thickness: 1-10 mm Excellent Insulation Lightweight and Flexible Low Thermal Conductivity Chemical Stability Non-CombustibleFunction: Refractory & Insulation & Fireproof

Product Parameters ★ Easy to wrap, shape or cut ★ Lightweight ★ Low thermal conductivity, Low heat storage ★ Good uniformity and smooth appearance ★ Excellent thermal shock resistance ★ Excellent chemical stability

Item		STD PAPER	HA PAPER	HZ PAPER
Classification Temperature(ºC)		1260	1350	1450
Working Temperature(ºC)		1100	1200	1350
Color		White	White	Pure White
Density(kg/m3)		180-220	180-220	180-220
Thermal Conductivity(W/m·k)		0.08(400ºC)0.12(600ºC)0.20(800ºC)	0.08(400ºC)0.13(600ºC)0.19(800ºC)	0.08(400ºC)0.13(600ºC)0.18(800ºC)
Tensile Strength(Mpa)		0.40	0.70	0.70
Chemical Composition	Al2O3(%)	42-45	45-50	35-38
	SiO2(%)	54-57	49-54	44-49
	ZrO2(%)	-	-	15-17

Application Company Profile

Laurel Group was established in 2003, and with over 20 years of production and trading experience, we are professionally engaged in the research, development, and sales of all types of refractory and insulation materials. Refractory materials include alumina series bricks, magnesia series bricks, corundum series bricks, mullite bricks, andalusite bricks. Insulation materials include ceramic fiber products, calcium silicate products, insulating brick, and rock wool insulation for the metallurgy, glass, ceramics, petrochemical, machinery, steel, cement, lime, construction and other industries.

OEM and ODM are also welcome here. We provide a global one-stop purchasing platform for refractory and insulation materials to offer you professional advice, qualified products and good service, helping you to make energy-saving easier.We passed the ISO 9001 certificate, and many products got approval from domestic and foreign customers; our materials have been exported to Europe, South America, North America, Africa, Oceania, and Southeast Asia ,it is over 50 countries, and built firm business relations with more than 200 foreign companies. Hope we will have the opportunity to work with you together.We warmly welcome you to visit us at any time.
